co2 laser engraving cutting machine 4060 for screen protector machine

FOB Reference Price:Get Latest Price
US $500-1,500 / Set | 1 Set/Sets (Min. Order)
Supply Ability:
200 Set/Sets per Month
Port:
Qingdao
Report Suspicious Activity
Overview
Quick Details
Condition:
New
Laser Type:
CO2
Engraving Area:
400*600mm
Engraving Speed:
500mm/s max
CNC or Not:
Yes
Cooling Mode:
Water Cooling
Applicable Material:
Acrylic, Crytal, Glass, Leather, MDF, Paper, plastic, Plexiglax, Plywood, Rubber, Stone, Wood
Graphic Format Supported:
AI, BMP, DXF, PLT
Place of Origin:
Shandong, China (Mainland)
Brand Name:
ShengTian
Model Number:
4060
Dimension(L*W*H):
1115mm *824mm * 670mm
Certification:
CE
After-sales Service Provided:
Overseas service center available
function:
both engraving and cutting
cutting speed:
500mm/s max
software:
CorelLaser/CorelDraw
worktable:
motorized up-down worktable
laser power:
50w/60w/80w
laser tube:
sealed co2 glass tube
color:
blue&white/red&grey
Packaging & Delivery
Packaging Details
standard export package, plywood box
Delivery Time
Shipped in 7 days after payment
Video Description

co2 laser engraving cutting machine 4060 for screen protector machine











Product Description

Specification

Model

ST4060

Laser Power

50W/60W/80W

Working area

400*600mm

Laser type

Sealed CO2 glass Laser tube

Cutting depth

15mm acrylic max

Resetting positioning accuracy

<0.01mm

Minimum forming character

1x 1mm

Power supply

220V 10% 50HZ or 110V 10% 50HZ

Software supported

CorelDraw, AutoCAD, Photoshop,

Picture Formats Supported

PLT/DXF/BMP/AI/JPG/GIF/PGN/TIF

Cooling system

Water cooling and protection system

Working table

Honeycomb table

Lifting table

400mm (Motorized Up and down table)

Machine Weight

90 kgs

Gross weight

140 kgs

Machine Dimension

1120mm *770mm * 710mm

Packing Dimension

1230mm*930mm*860mm (50w)

1400mm*1090mm*860mm (60w and 80w)

Standard accessories

Exhaust fan and pipe, Power Cable, USB Cable, LED light, Water Pump, Air pump, Software and Dongle, Keys etc

Spare parts recommended

Laser tube, mirrors & lens

Optional parts

Rotary clamp

 Machine photos







acrylic, leather, wood, rubber, double-color board, MDF, plywood, bamboo, paper, cardboard, marble, granite, stone, glass, fabric, textile, coated metal, painted metal, anodised aluminum etc



 Working samples



Applicable industries

Seal/Stamp making, arts and crafts, advertising, decoration, wood working, leather manufacturing, packaging, printing, mould making, furniture, clothing and brand making etc.

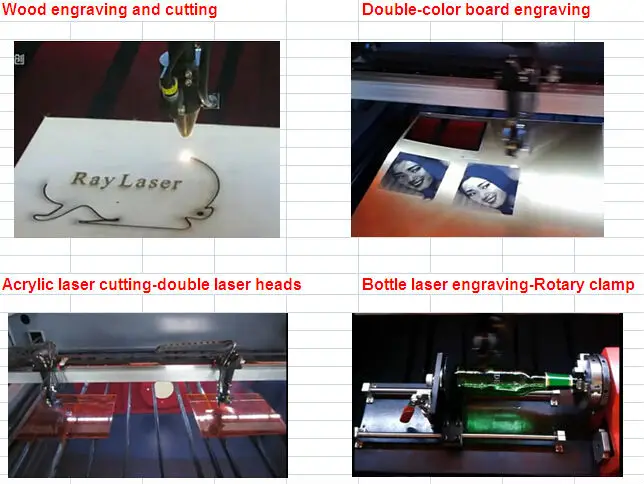

 Working videos



Our Services

Warranty & After-sale service

1) The warranty for the whole machine is 24 months.
2) The warranty for the mirrors & lens and laser tube is 3 months.
3) The warranty is from the date of arriving at the port of destination.
4) During the warranty, we will repair the broken parts for FREE.
5) When the warranty is over, we will charge for the repair.
6) If there's any problem in the future, we will give you technical support by email/telephone/skype/wechat/whatsapp etc.

Packaging & Shipping

Packaging

For the packing, we use the standard export package—plywood box-no need to fumigate.



Shipping

We will send out the machine by Sea to the nearest port in your country.
If you want to send it by DHL or any other shipping ways, please contact us in advance.
For shipping purpose, please tell us the detailed contact information after you confirm the order, including the company name, address, contact person, telephone number etc.

Certifications



FAQ

Frequently asked questions

Q: What machines does your company supply?

A: We mainly do CO2 Laser engraving/cutting machine, and Fiber Laser marking machine.

CO2 Laser engraving/cutting machine: 260*320mm, 300*600mm, 400*600mm, 600*900mm, 900*1300mm, 900*1600mm, 1200*1500mm, 1300*2500mm etc.

Fiber Laser marking machine: Handy and Integrated type 10w/20w/30w.

Q: What kind of work the above machines can do?

A: CO2 Laser engraving/cutting machine: mainly work on non metal materials, like acrylic, leather, rubber, wood, paper, cardboard, marble, granite, glass etc.

Fiber Laser marking machine: mainly mark on metal and some non metal materials, like stainless steel, aluminum, copper, plastic, ceramics etc.

Q: What software is used for laser machine?

A: CO2 Laser engraving/cutting machine: CorelLaser and Ruida

Fiber Laser marking machine: JCZ/EZCAD software.

Q: Does your laser machine support CorelDraw/AutoCAD?
A: Yes, our laser machine can work in CorelDraw and AutoCAD directly.

Q: What files is the software compatible with?
A: AI, PLT, DXF, BMP, JPG, etc

Q: What's the difference between the laser tubes?
A: Usually, the power of the tube is decided by two parameters:
1) The length of the tube, the longer the tube is, the more powerful.
2) The diameter of the tube, the bigger the tube is, the more powerful.

Q: Does your laser machine run from a laptop or Desktop PC?
A: Both are OK, as long as your operation system is window XP/win7
/win8/win10. One USB cable will connect machine with computer.

Q: How to confirm the best model ?

A: Please give me the answers for the three questions below, then the proper machine will be recommended to you.

Q1- What's the working material ?

Q2- What's the size of material ?

Q3- What's the Cutting depth ?
